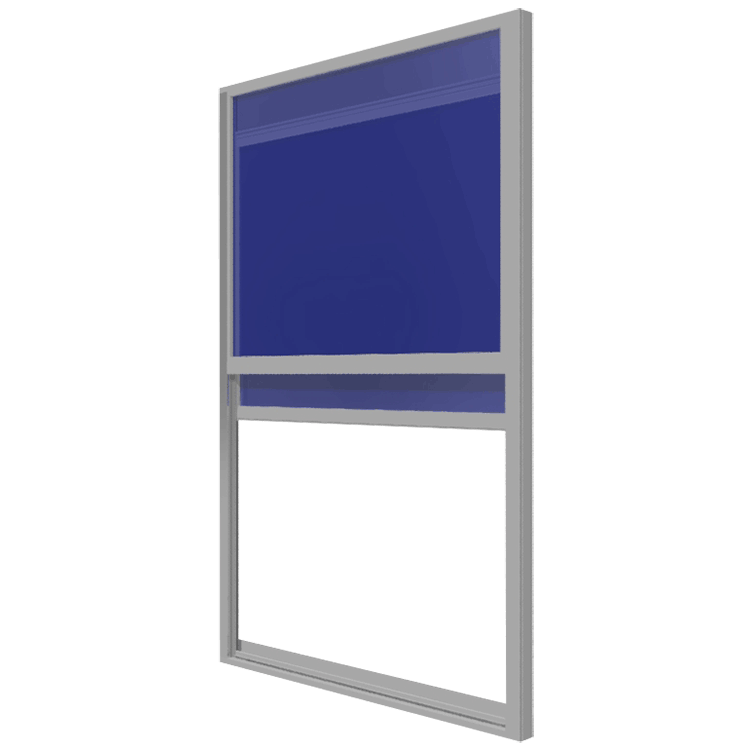

Series - MG - 200

Impact Resistant Single Hung Window

• Max. Dimensions: 53-1/8” x 96”
• Meets Florida Building Code for High Velocity Hurricane Zone. Large and Small missile rated
• Sturdy Construction allows for very high wind loads up to 140 PSF
• Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads
• 2-7/8” deep frame. Glazing Capabilities: Heat strengthened laminated (5/16” & 7/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
• Hybrid “Ultralift” ® balances for ease of operation come standard
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

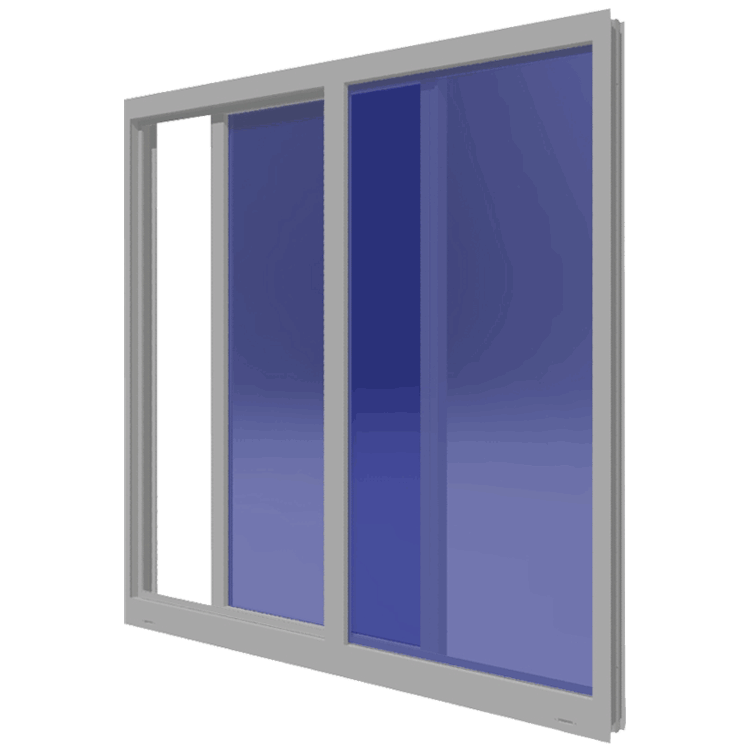

Series - MG - 300

Impact Resistant Horizontal Sliding Window

• Featuring oversized dimensions: 127” x 74”
• Meets Florida Building Code for High Velocity Hurricane Zone.
• Large and Small missile rated
• Sturdy Construction allows for very high wind loads up to 140 PSF
• Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads 2-7/8” deep frame. Glazing Capabilities: Heat strengthened laminated (5/16” & 7/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
• OX, XO and XOX configurations available
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

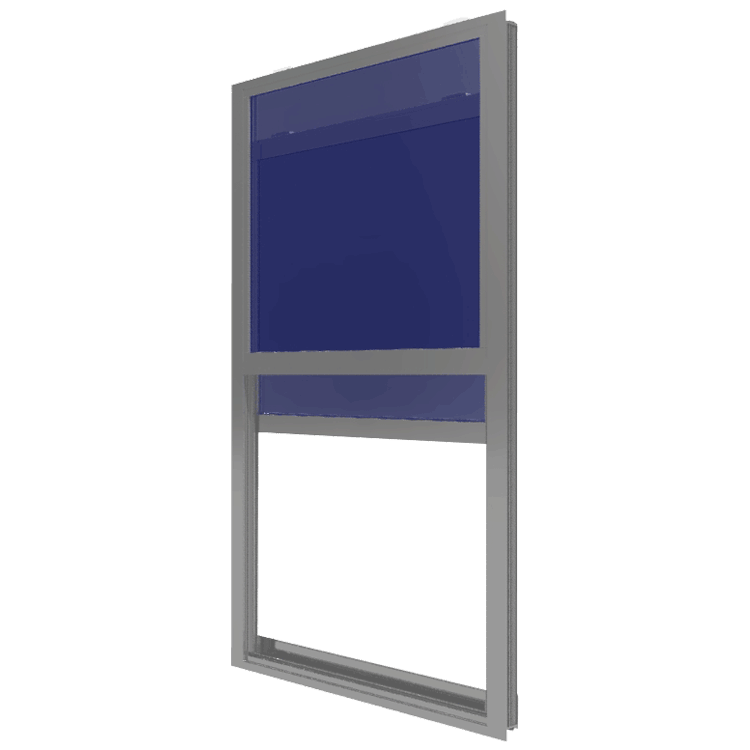

Series - MG - 350

Impact Resistant Single Hung Window

• Meets HVHZ. LMI Rated
• DP= +65/-80 PSF
• Sizes up to 53” x 76”
• Slim structure to maximize glass view and day light opening
• Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
• Machine glazed with silicone GE 2000/DS795
• Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
• Silicone glazing gasket and stainless steel screws
• Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light transmittance
• Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)
• Aluminum 6063T6 structure
• Colonials for design freedom

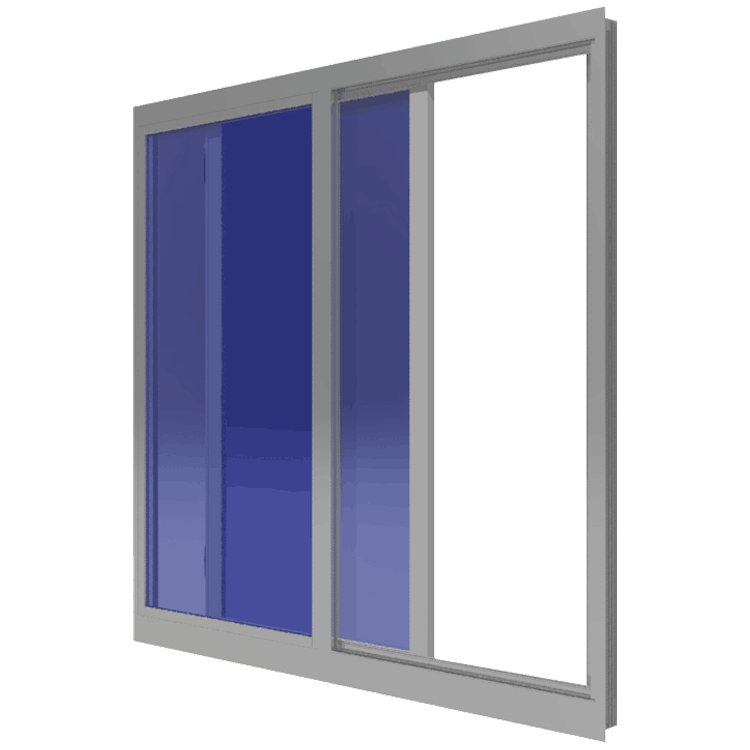

Series - MG - 350

Impact Resistant Horizontal Sliding Window

• Meets HVHZ. LMI Rated
• DP= +/-65 PSF
• Sizes: OX/XO up to 74” x 63” and XOX up to 111” x 63”
• Slim structure to maximize glass view and day light opening
• Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
• Machine glazed with silicone GE 2000/DS795
• Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
• Silicone glazing gasket and stainless steel screws
• Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light transmittance
• Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to
• AAMA 2605 (10 years warranty)
• Wheels in PMO (Acetal) for smooth operation
• Aluminum 6063T6 structure
• Colonials for design freedom

Series - MG - 350

Impact Resistant Fixed Picture Window

• Meets HVHZ. LMI Rated
• DP= +/-65 PSF
• Sizes: 48” x 84” / 36” x 108” / 24” x 168”
• Slim structure to maximize glass view and day light opening
• Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
• Shapes and Figures available, colonials for design freedom
• Meets ANSI Z97.1 (Human fall/impact protection)
• Machine glazed with silicone GE 2000/DS795
• Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
• Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light
• transmittance
• Silicone glazing gasket and stainless steel screws
• Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)
• Aluminum 6063T6 structure

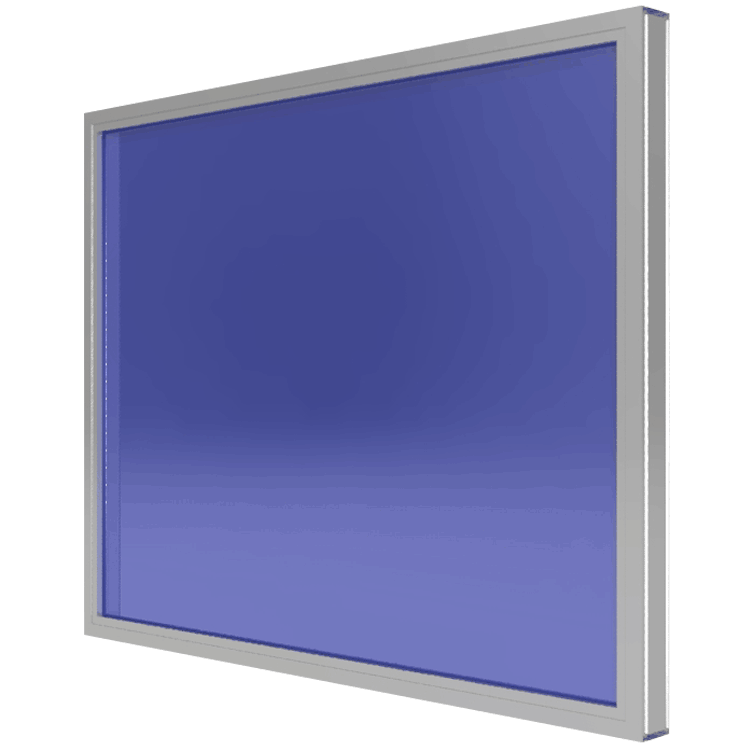

Series - MG - 400

Impact Resistant Fixed Picture Window

• Max. Dimensions: 48” x 84”
• Meets Florida Building Code for High Velocity Hurricane Zone.
• Large missile rated
• Matches with MG-200 and MG-300 single hung and horizontal
• roller series
• Figures and arches are available
• Glazing applied with high strength silicone for elevated resistance
• to impact and cyclic loads
• 2-7/8” deep frame. Glazing capabilities: Heat strengthened laminated 7/16” and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
• Design Pressures up to +/- 100 PSF
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

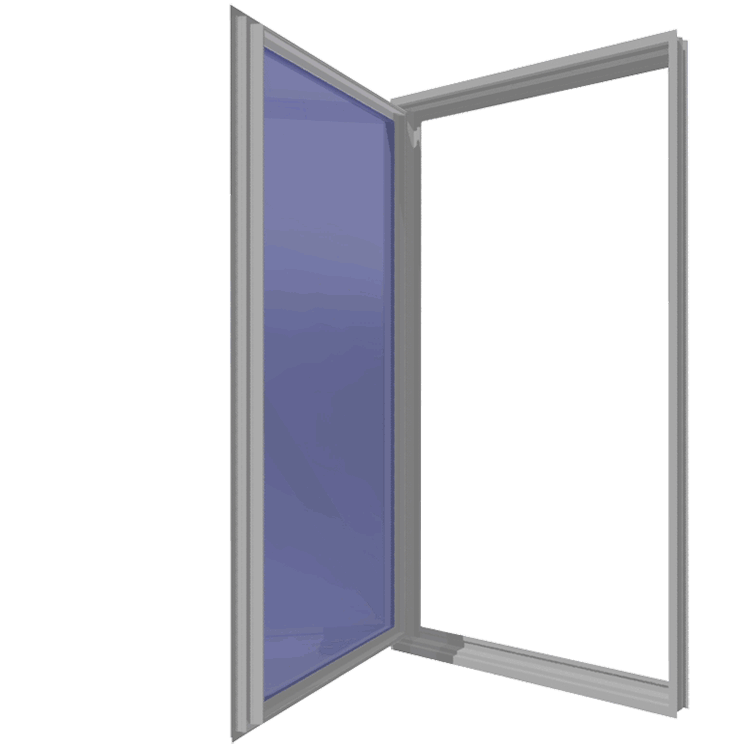

Series - MG - 600

Impact Resistant Casement and Awning Window

• Meets Florida Building Code for High Velocity Hurricane Zone.
• Large and Small missile rated
• Up to 3 windows in any combination, in the same frame. Intermediate mullions are included inside the frame. Transoms on top and bottom
• are possible, and are included in one single frame
• Sterling and Stormbalance Hinges in Stainless Steel.
• Egress or Washability hinges available
• Dyad, Dual Arm and Single Arm operators all in Stainless Steel.
• Fall protection device available
• Max. Dimension of a single window: 37.5” x 76” Design Pressures:
• up to +80 / -100 PSF
• Glazing capabilities: 5/16” and 7/16” laminated and 11/16” insulated laminated
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

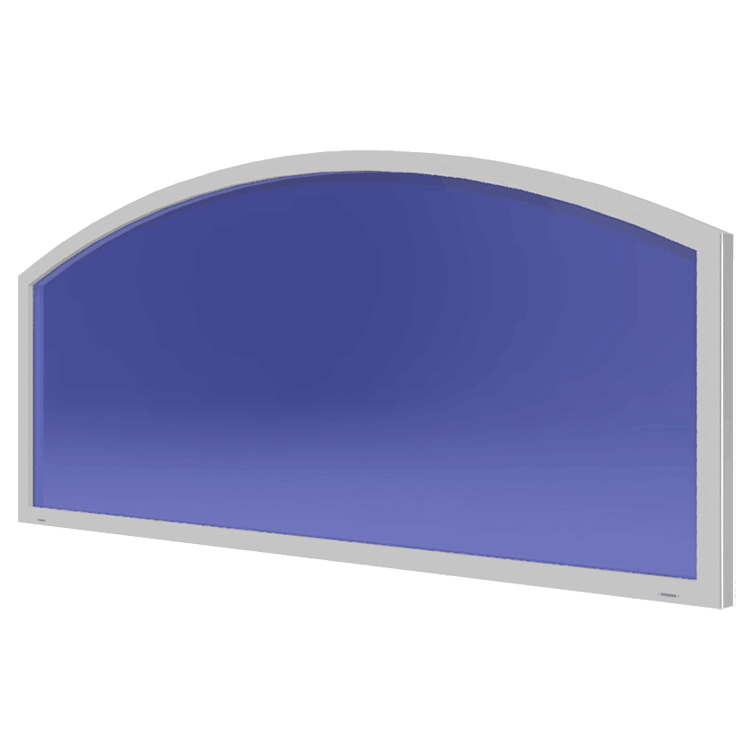

Series - MG - 450

Impact Resistant Fixed Picture Window

• Versatile series that can be manufactured as fixed glass window, louver or a combination of both
• Meets Florida Building Code for High Velocity Hurricane Zone.
• Large and Small missile rated
• Includes intermediate horizontals (verticals depending on orientation)
• Mitered cuts and assembly via fixed corner and alignment keys.
• For figures and arches, corner keys and alignment keys are adjustable. Drained pockets with Hi-Flo® valves and screw covers
• Glazing capabilities 7/16”, 9/16” Laminated and 1” insulated laminated
• Max Dimensions as Fixed Window: 48” x 180” Design Pressures:
• +85/-120 PSF
• Max. Dimensions as Louvers 60” x 168” Design Pressures: +/- 80 PSF
• Louvers compatible with MG 3000 door and impact rated
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

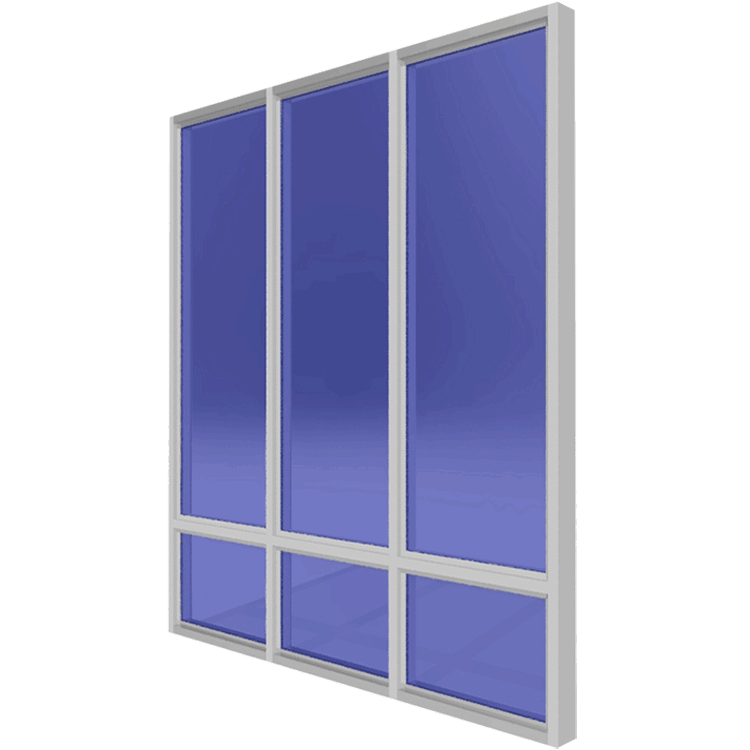

Series - MG - 5000

Impact Resistant Storefront Wall System

• Meets Florida Building Code for High Velocity Hurricane Zone.
• Large missile rated
• Aluminum Frame 1-3/4” x 5” with recess glazing
• Mates with commercial door MG-500 without necessity of additional mullions
• Glazing capabilities: 9/16” HS laminated
• Maximum dimensions: 48” x 144” in multiple units, with single jumbo size up to 84” x 180”
• Maximum pressure: 130 PSF
• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

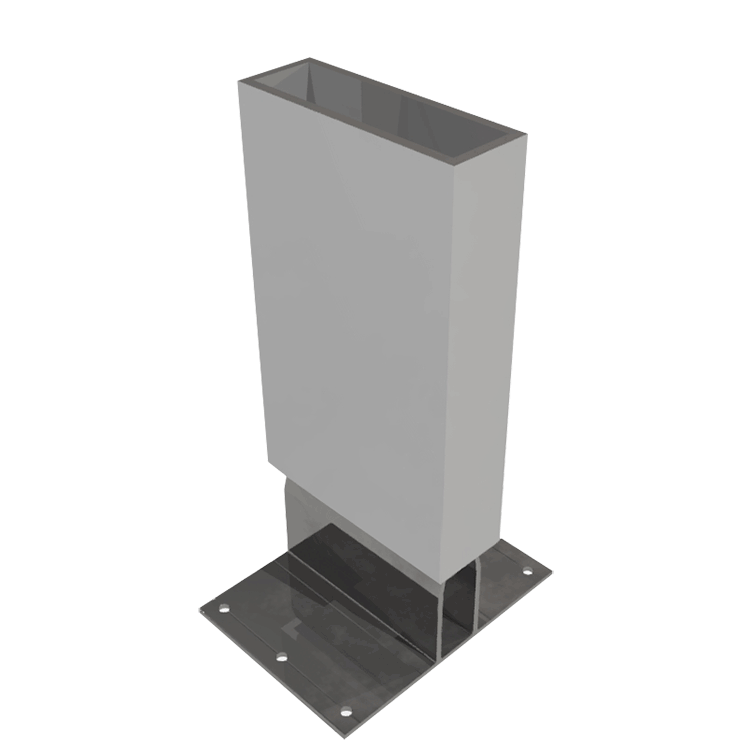

Series - MG - 150

Unclipped Mullions

• Has been designed with the installer in mind. The objective is to reduce
• the installation work and time by eliminating the anchoring clips
• Take advantage of the extrusions of the systems that are connecting,
• increasing the inertia of the resulting composition mullion
• Validated for vertical and horizontal applications
• Available in two sizes: 1″ x 4” and 1″ x 3”
• Spans up to 120”. DP up to 120 PFS
